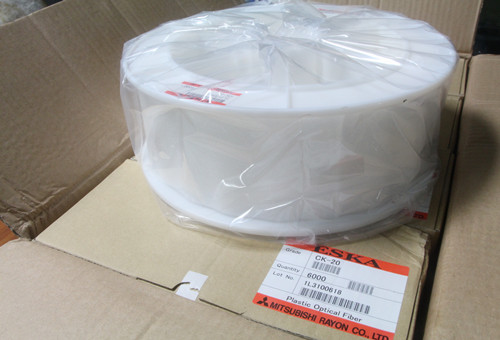

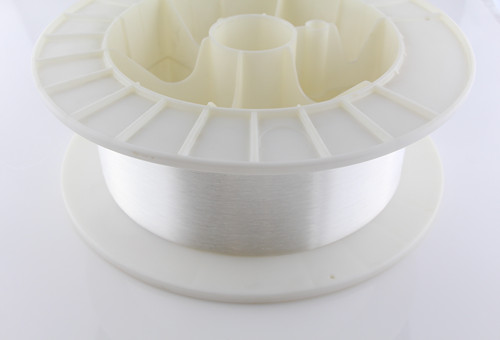

Mitsubishi Eska Fiber
- Ordering Codes
- Technical Information
| Code |
Fiber Diameter |
Diameter Tolerance |
Reel Length |
Approximate Weight |
Minimum Bend Radius |
Tensile Strength |
Transmission Loss @650nm |
| CK10 |
0.25mm(0.01") |
±0.023mm (0.001") |
12000m(39370') |
0.06g/m |
5mm(0.2") |
3N |
350dB/km |
| CK20 |
0.5mm(0.02") |
±0.03mm (0.001") |
6000m(19685') |
0.3g/m |
10mm(0.39") |
14N |
250dB/km |
| CK30 |
0.75mm(0.03") |
±0.045mm (0.002") |
2700m(8858') |
0.6g/m |
15mm(0.59") |
35N |
200dB/km |
| CK40 |
1.0mm(0.04") |
±0.06mm (0.002") |
1500m(4921') |
1g/m |
20mm(0.79") |
65N |
200dB/km |
| CK60 |
1.5mm(0.06") |
±0.09mm (0.004") |
700m(2297') |
2.2g/m |
30mm(1.18") |
126N |
200dB/km |
| CK80 |
2.0mm(0.08") |
±0.12mm (0.005") |
250m(1148') |
4g/m |
40mm(1.57") |
224N |
200dB/km |
| CK100 |
2.5mm(0.1") |
±0.15mm (0.006") |
250m(820') |
6g/m |
45mm(1.77") |
350N |
200dB/km |
| CK120 |
3.0mm(0.12") |
±0.18mm (0.007") |
150m(492') |
9g/m |
60mm(2.36") |
504N |
200dB/km |
